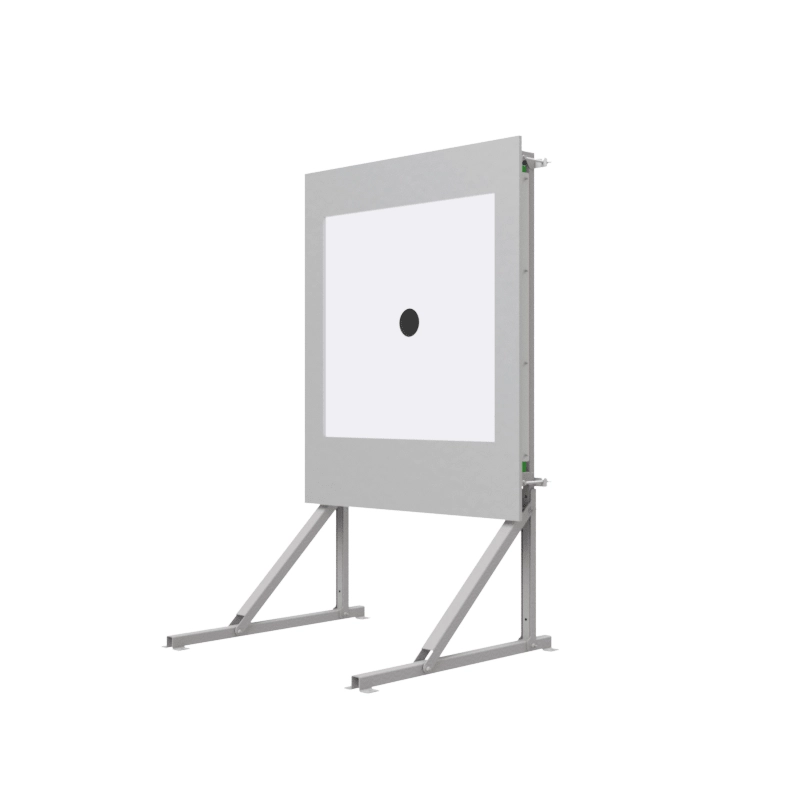

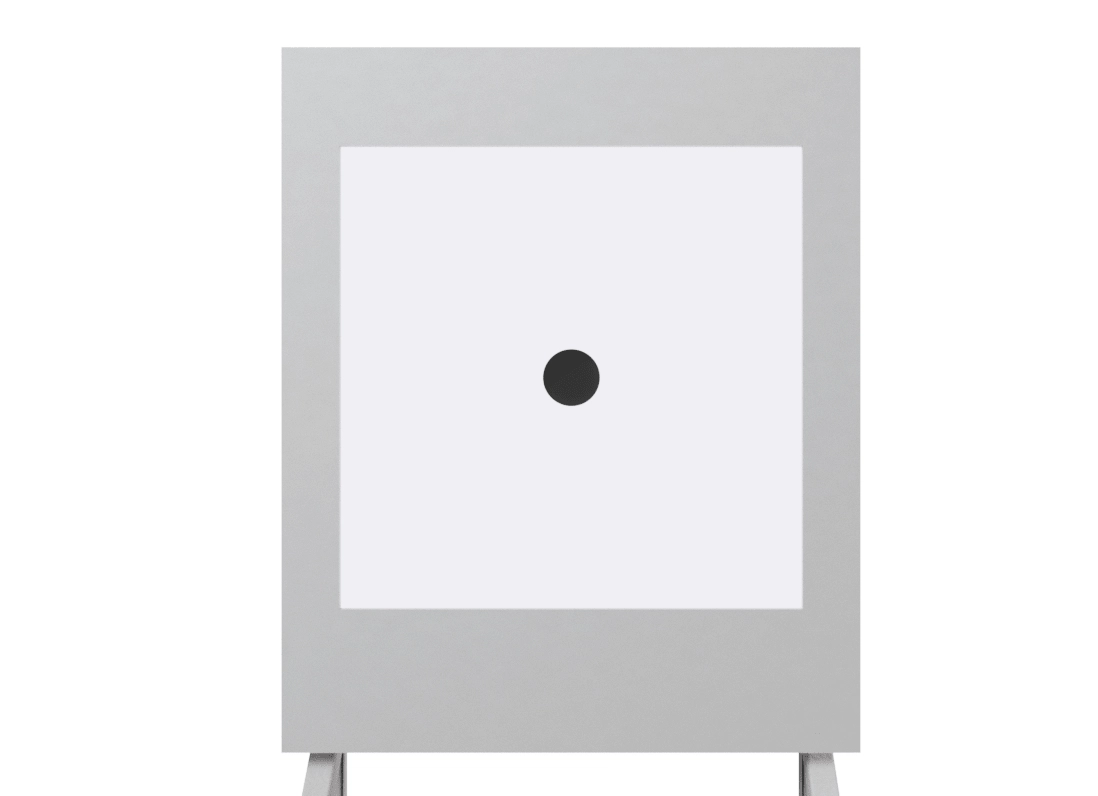

TWO COLORS AVAILABLE

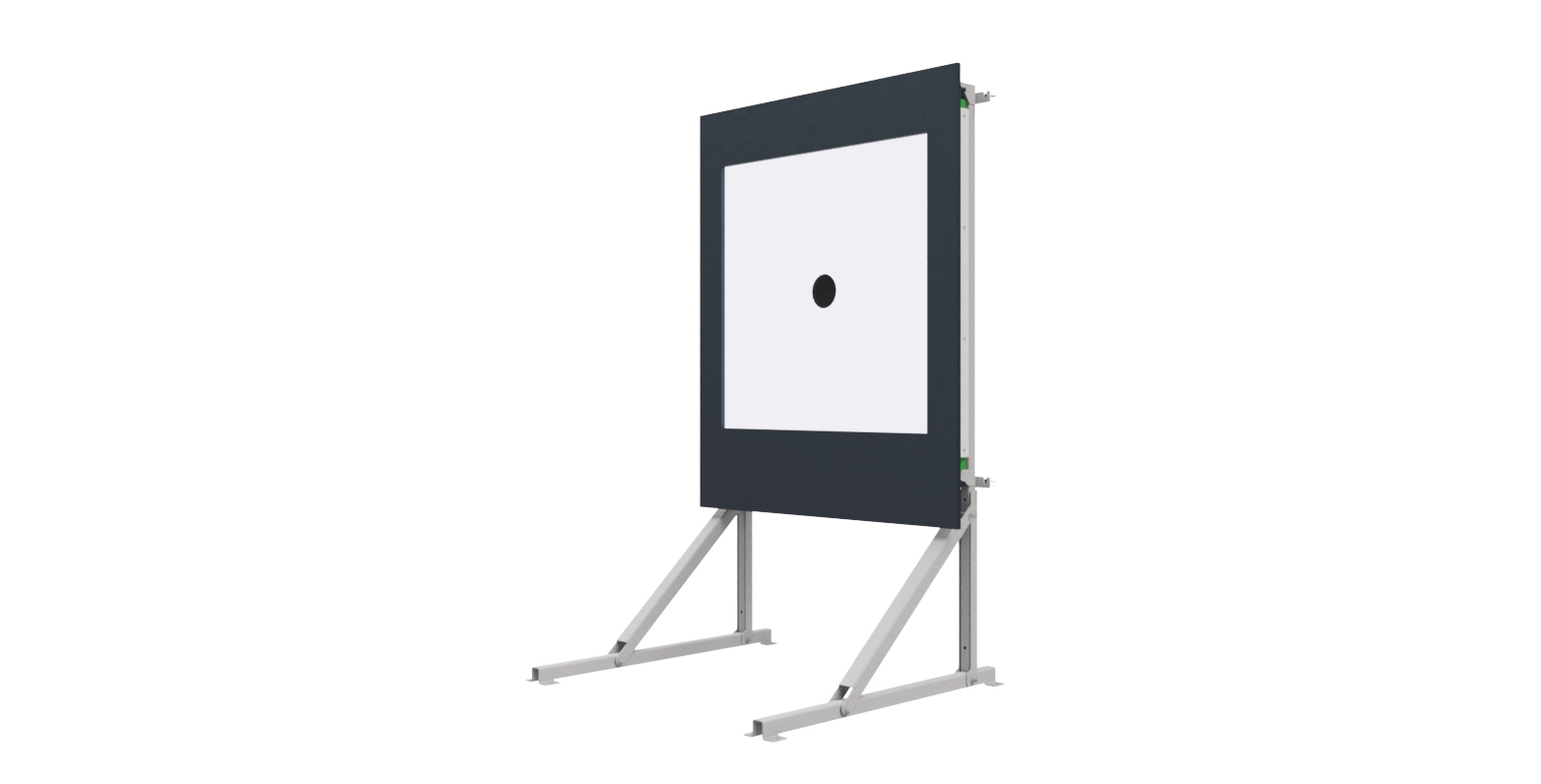

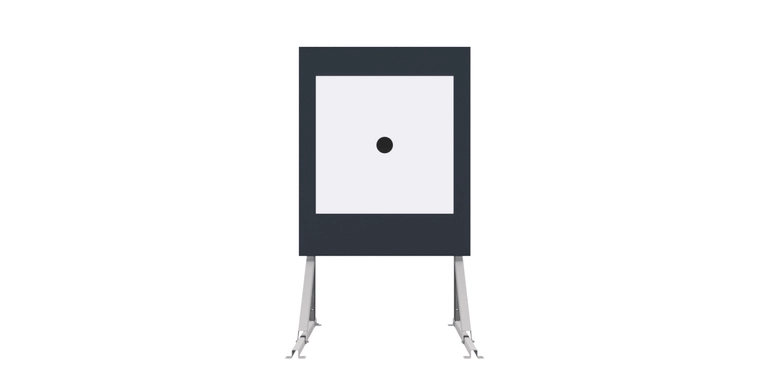

SQ80 Electronic Scoring Target

The SQ 80 electronic target scoring system is designed for 50m, 100m and 300m distances and consists of two main components - a target with the detection area of 80 x 80 cm and the analytic scoring software. The system provides immediate performance feedback and detects the position of shots with exceptional accuracy. Due to the automatic recording of hits, it is not required to step beyond the shooting line to manually score the result. The calculated position of a shot is immediately transferred to the control computer and all shots are displayed in the software. Thanks to its wide target detection frame, the system is suitable for hunters.

QTY:

5-year-warranty

2-Year Warranty

easy installation

Easy Installation

worldwide shipping

Worldwide Shipping

SOFTWARE SPECIFICATION
  • Different software packages to meet the individual shooter or club requirements

  • Web-based, compatible with any modern web browser

  • Supports different devices and screen sizes

  • Compatible with Windows, Linux, macOS

  • Supports targets and disciplines from ISSF, DSB, BDS

  • Individual user profiles and access to personal training history

We also provide additional software features based on your needs.

Downloads

The system includes

• Target with a detection area of 80 x 80 cm
• ESA software
• Cable to connect to the owner’s PC
• Rubber band

Measuring frame

The measuring frame forms a self-contained chamber for ambient noise detection. Sound sensors detect all projectile impacts caused by noise. These coordinates are then transferred to the end-user device (laptop, tablet or smartphone) and displayed with pinpoint accuracy on a virtual target using the INTARSO software.

Optional equipment

• Battery-powered versions available
• Control system & printer

HARDWARE SPECIFICATION
  • Supported weapons: small-bore rifle, small-bore pistol, big-boar, high power rifle, big-bore pistol

  • Target frame with detection area: 80 x 80 cm

  • Exceptional hit accuracy: > 1/10 mm

  • Shooting distances: 100 meters

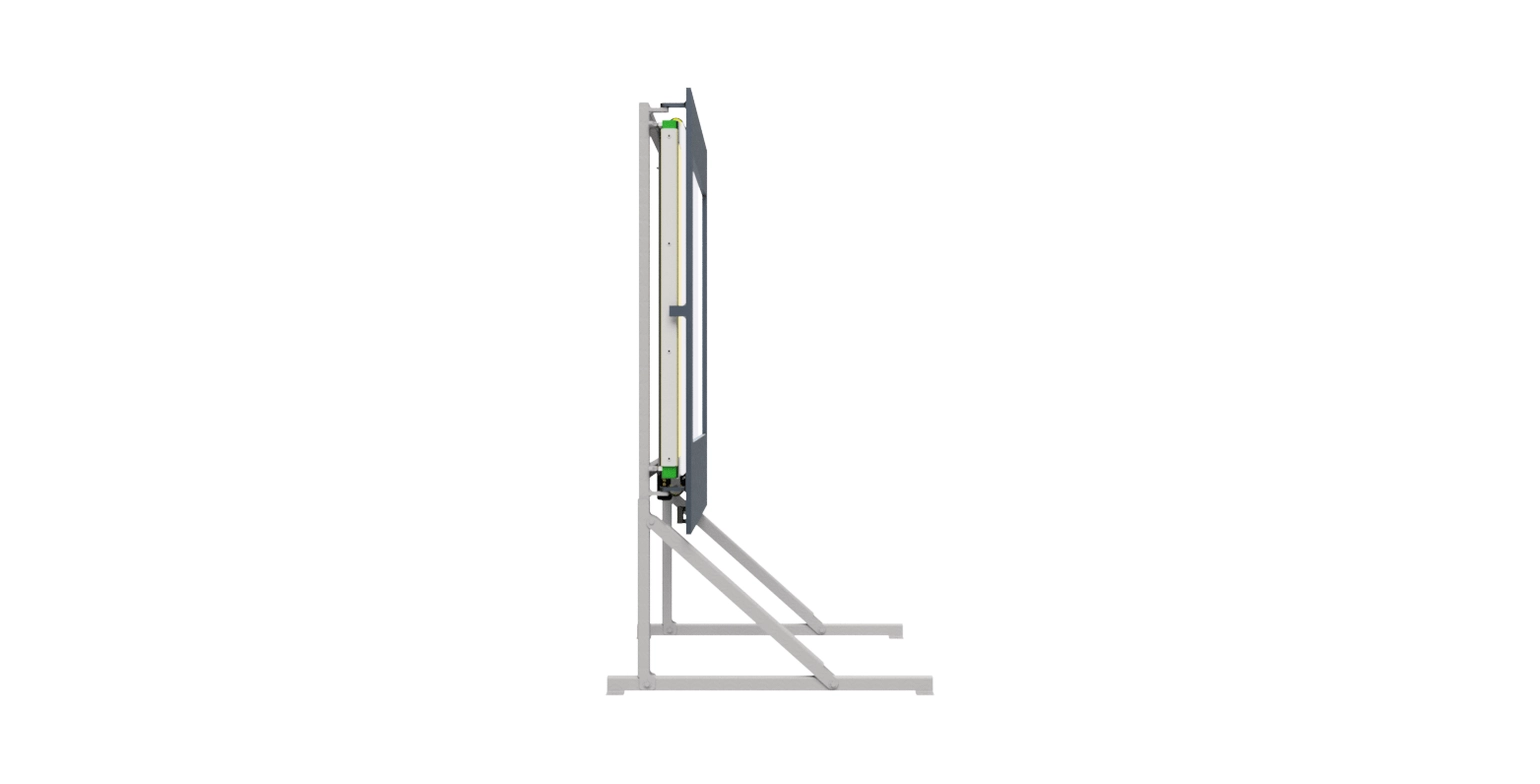

  • Mounting option: wall mount or stand mount
